Presenting Our 64' and 57' Die Cast Powered Chassis

Three Powered Chassis variants have been produced: the 64' with 12mm diameter wheels and 64' with 14mm diameter wheels; the 57' variant is available with 12mm wheels.

Each chassis is supplied boxed and with a comprehensive instruction sheet.

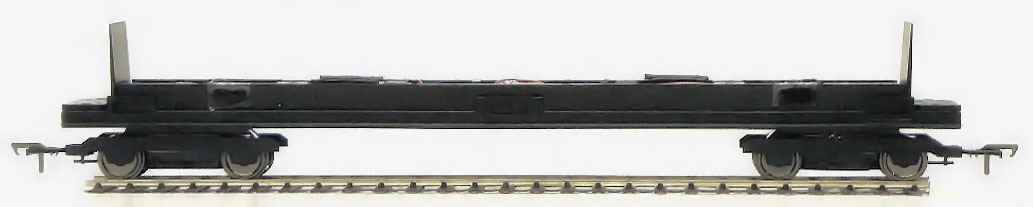

RPC6412
(12mm)

SOLD

OUT

RPC6414
(14mm)

SOLD OUT

RPC5712
(12mm)

£54.95

POSTAL CHARGES - MAINLAND U.K.
We dispatch all 'mail order' powered chassis using the Royal Mail Special Delivery service. For each individual shipment: one powered chassis will be charged £7.65; two or three chassis will be charged £8.95 (prices effective from 04.04.2022)

TECHNICAL SPECIFICATIONS

POWERED CHASSIS SUITABLE FOR ‘OO’ GAUGE MODEL RAILWAY KIT & BESPOKE APPLICATIONS

12 Volt Analogue & Digital Operation
Die Cast Metal Chassis
Removable Acrylic Chassis Surround
Acrylic Bogie Towers, Brass Wheels & Worms
Brass Pick-Ups
Removable Acrylic Bogie Side Frames
Acrylic Accessories (includes NEM couplings)

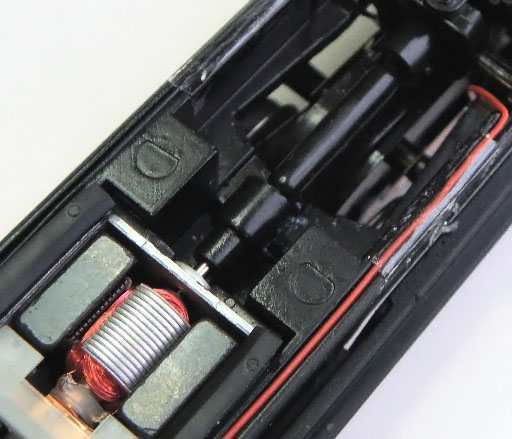

Motors in Rubber Housings
DCC ‘Ready’ Printed Circuit Board

NOT SUITABLE FOR TRACK RADIUS LESS THAN 438mm (‘SECOND’ RADIUS)

Weight 230g (64') / 205g (57')
Current Draw 0.8A – 1.5A
Combined Motor Stall 3A

N.B: IT IS UNLIKELY THAT A STALL WILL OCCUR ON BOTH MOTORS AT ONCE OWING TO THE INDEPENDENT MOTOR ARRANGEMENT AND 18:1 MOTOR-TO-WHEEL GEAR RATIO

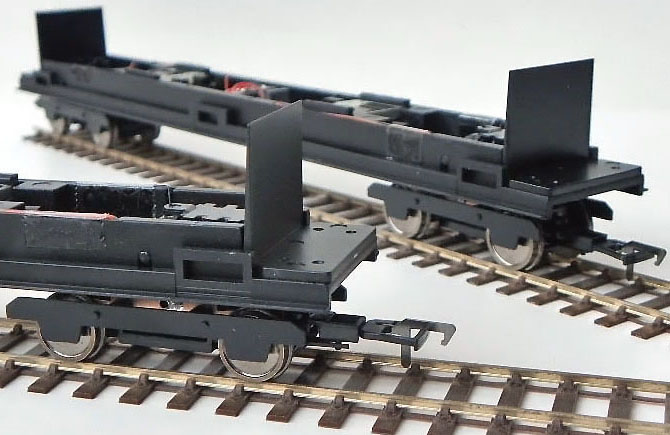

Replica Railways 12mm & 14mm 64' Powered Chassis

REPLICA RAILWAYS DIE-CAST CHASSIS (PATENT GB2485580) KEY FEATURES:

PROFILE BELOW CARRIAGE WINDOW LINE

Because we think that there is no excuse in compromising carriage space with a lump of metal: our chassis has been designed to provide the weight needed for traction but still allows for interior details to be added and seen!

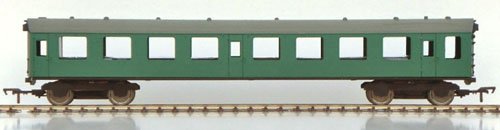

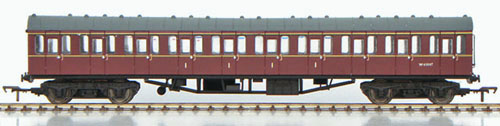

Shown right are examples of our own Mk1 Vehicles both of which are mounted on a 64' 14mm Powered Chassis. At the top is a fully finished Mk1 Suburban BR WR Composite (including chassis components, bracing applied to the chassis surround and Mk1 (B1) bogie sideframes). Below the Suburban is a Mk1 Corridor BR SR First Open bodyshell shown without glazing to best illustrate the low profile of the chassis.

COMMON WHEELBASE

The 64' chassis is suitable for 8’ 6” and 8’ 9” bogies and for vehicles with 46’ 6” bogie centre to centre: the common measurement for the majority of BR 64’ Mk1 ‘based’ vehicles. The 57' chassis is for vehicles with a 40' bogie centre to centre.

CHASSIS VARIANTS

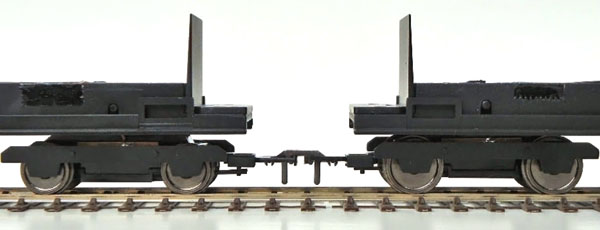

Two different wheel diameter 64’ chassis have been produced (with no change to the ride height - shown left) and are suitable to fit to the following BR Classes:

64' 12mm (scale 3' Wheel) – 114, 115, 117, 118, 119, 120, 121, 122 / 131, 123, 124, 125, 127 & 128

64' 14mm (scale 3' 6" Wheel) – 202, 203, 204 / 206, 205, 207, 302, 303, 304, 305, 307, 308, 309, 410 / 412, 411, 413, 414, 415, 416, 419, 420 / 422, 423, 427, 430, 432 & 504

Our 57' Chassis is suitable to fit to the following BR Classes:

57' 12mm (scale 3' Wheel) – TOPS Class 100, 101, 103, 104, 105, 107, 108, 110 and 111 plus Class 129 Parcels Car, Derby Lightweights and Wickham Units.

REMOVABLE BOGIE SIDEFRAMES

The 'pull-away' design will allow you to add bogie sideframe details before re-fitting to the bogie gear towers.

This is certainly an advantage when it comes to 'weathering' your sideframes as there is less chance of accidently painting your wheels and / or your pick-ups.

REMOVABLE ACRYLIC CHASSIS BASE

Allows you, the modeller, to add the majority of your chassis details and components away from the ‘weight’ – simply remove the screws. The base has running / foot boards that stretch the entire length of the chassis: these can be 'cut down' / seperated to suit your specific vehicle. For further details see the feature "How to Remove The Chassis Surround" below.

DCC READY – as our chassis features a PCB with an 8-pin socket and is equipped to add directional and interior lighting if you require it.
